Nutritional biomarkers

Nutritional biomarkers provide objective information on dietary exposure. Objective assessment is highly important to circumvent the fundamental limitation of measurement error in self-reported subjective assessment of dietary exposure.

Among prospective cohort studies assessing incident non-communicable diseases, EPIC-Norfolk is the largest cohort that has measured habitual dietary intake with subjective instruments and also nutritional biomarkers [9]. In one analysis, the investigators compared the association between habitual fruit and vegetable consumption and incident type 2 diabetes with that between plasma vitamin C as a biomarker of fruit and vegetable consumption and type 2 diabetes.

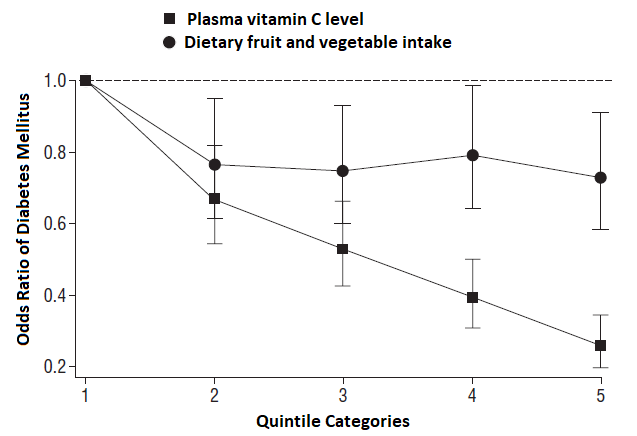

As seen in Figure D.3.2, there was a stronger inverse association when plasma vitamin C biomarker was examined, compared with self-reported fruit and vegetable intake from a food frequency questionnaire, across fifths (quintiles) of their distributions. This indicates a proof of principle that a nutritional biomarker can provide a method with less error than the subjective instrument to examine associations between dietary factors and disease.

Although many studies demonstrate utility of nutritional biomarkers, they are highly diverse in terms of applications, strengths, and limitations. Dietary dimensions assessed with nutritional biomarkers are shown in Table D.3.9. These vary depending upon the category of biomarker, as described below.

Definition of nutritional biomarkers

In the field, many definitions are proposed. In general terms, a nutritional biomarker can be defined as “any biological specimen that is an indicator of nutritional status with respect to intake or metabolism of dietary constituents. It can be biochemical, functional or clinical index of status of an essential nutrient or another dietary constituent” [14].

Categories of nutritional biomarkers

There is more than one scheme used to categorise nutritional biomarkers. Biomarkers can be grouped according to what they assess [14]. A single biomarker may be included in one or more of the following categories:

1. Biomarkers of dietary exposure assess dietary intake of different nutrients, non-nutritive components, foods, food groups, or dietary patterns.
2. Biomarkers of nutritional status assess not only intake but also metabolism of the nutrient(s) and possibly effects from disease processes. Potentially these may not reflect the nutritional status of a single nutrient, but may indicate the interactions of several nutrients.

Another classification scheme distinguishes recovery, concentration, predictive and replacement biomarkers as the followings [6, 10, 13]. The classification is not mutually exclusive.

1. Recovery biomarkers are based on the concept of metabolic balance between intake and excretion during a fixed period of time. Recovery biomarkers are directly associated with dietary intake and can be used to assess absolute intake (not only to rank intake). There are relatively few recovery biomarkers, including doubly labelled water, urinary nitrogen, and urinary potassium.
2. Concentration biomarkers are correlated with dietary intake and used for ranking of individuals. They are not used to determine absolute intake because they are related to metabolism, personal characteristics (e.g. age, sex), and lifestyle factors (e.g. smoking, physical activity). Examples of concentration biomarkers include plasma vitamin C or plasma carotenoids.
3. Predictive biomarkers, which do not completely reflect dietary intake, but can predict it to some extent, such as urinary sucrose and fructose. Similar to recovery biomarkers, these are sensitive, time dependent and demonstrate a dose-response with intake; the key distinction is that their overall recovery is lower [21].
4. Replacement biomarkers, which serve as a proxy for intake when it is not possible to capture because information in nutrient databases is unsatisfactory or unavailable. Examples include sodium, phytoestrogens, polyphenols or aflatoxin.

Specimen collection

Nutritional biomarker methods rely upon biological specimen being collected from the participant. Examples of biological specimens include:

• Serum and plasma: Reflect the short term intake from a few days to one month.
• Erythrocytes: Reflect longer-term intake than serum and plasma, because of their half-life (approximately 120 days), but shorter than adipose tissue.
• Adipose tissue: Reflects long-term intake, most useful to assess exposure to fat-soluble vitamins and essential fatty acids.
• Urine: Reflects short-term intake. Samples collected can be 24-hour samples, overnight samples or spot samples. 24-hour samples are suitable for recovery biomarkers such as nitrogen, potassium and sodium or prediction biomarkers such as sucrose plus fructose. However, since they can be burdensome for participants, it is necessary to check the compliance, which can be done with the use of para-aminobenzoic acid (PABA). PABA is assumed to undergo urinary excretion in 24 hours, so if PABA recovery is high (e.g. >85%), then the collected urine can be considered complete [2].
• Hair and nails: Reflect long-term intake. They are easy to collect and store, but it is possible that environmental contamination occurs (particularly for hair).
• Cheek cells: Simple to collect.
• Blood spot from fingertips: Simple to collect.
• Stool/faeces: Difficult to collect, higher burden for the participants.

Other bio-specimens may include leucocytes, cord blood, breast milk, saliva, sweat, and any biopsied tissue biopsied.

Timing of specimen collection

• Time of day: Biomarker levels can be influenced by the time of the day if measured in samples which reflect the short-term intake. One example is the diurnal variation that occurs with some biomarkers, so the timing is important to note. Ideally, time of the day should be standardised when the samples are collected. By contrast, measures in samples that reflect longer-term intake, such as nails, hair, and adipocytes, for example, do not fluctuate by time of day.
• At fasting or non-fasting state: Similar to time of day, the physiological state of an individual should be considered. Some fat-soluble markers (e.g. carotenoids) are partly present in lipoprotein cholesterols, and thus measures from a post-prandial blood sample need to be interpreted carefully.
• Seasonal variation: This can exist either because the food sources of biomarkers differ (e.g. plasma lycopene because of the different consumption of tomatoes across seasons) or because the biomarker is influenced by an external factor related to different seasons (e.g. 25-hydroxy vitamin D levels are higher during summer because of higher sun exposure).

Storage

• It is advisable to store biological samples in different aliquots rather than a single tube, as repeated freeze-thaw cycles can affect the biomarker.
• Most samples should be frozen at very low temperature (-80C) to avoid degradation, although it is ideal to freeze at even lower temperature using liquid nitrogen.
• Measurement of biomarkers in blood cells requires isolation of these samples from the blood and separate freezing.
• Different samples are characterised by different tolerance over long periods of storage [24].
• Good labelling and traceability of frozen samples is essential.
• Use of different anti-coagulants in collection tubes may affect biomarkers.
• Different samples are characterised by different tolerance over the long periods of storage [24].
• Some types of nutrients and chemicals and types of samples are more prone to degradation and contamination. Acidity, temperature, exposure to light and other factors need to be controlled, depending on target molecules to assay. Before collecting bio-specimens, pre-specification of molecules to assay and a pilot study are thus warranted. Examples include:
  - Vitamin C biomarker is known to be oxidized without storing with meta-phosphoric acid, which stabilises it.
  - Trace minerals assays are known to be contaminated with metals ubiquitously present in sample tubes and any other materials [17].
  - Several vitamins (e.g. riboflavin, vitamin K) are known to be photo-sensitive.

Assessment of nutritional intake and status

Some nutrient intakes are particularly difficult to assess by subjective reporting. An example is dietary sodium, which is present in many manufactured food products and to different degrees even for the same food item. It is also added during cooking or at the table, often inconsistently and without measuring the amount added. Due to the high risk of measurement error associated with subjective reporting, objective measurement of urinary sodium is used to assess sodium intake in epidemiological studies.

- The UK implemented a population-based intervention to gradually reduce sodium content in foods over time. The pre-, interval, and post-intervention assessment of 24-h urinary sodium confirmed reduction of salt intake over time [18].

Nutritional biomarkers are used to identify nutritional adequacy. For example, iron deficiency is determined by using combination of serum ferritin and transferrin receptor. For clinical diagnosis of deficiency diseases, confirmation is needed with combination of other clinical examinations (e.g. symptoms).

Biomarkers of nutritional status are not necessarily nutrients. Examples include:

• Methylmalonic acid levels are elevated in a deficiency state of vitamin B12 and therefore serve as a biomarker of vitamin B12 status.
• Homocysteine levels are elevated in the absence of enzymes to metabolise it to cysteine or methionine. The enzymatic reactions require vitamins including vitamin B6, vitamin B12, and folic acid, and thus elevated homocysteine may indicate the lack of any of these nutrients.
• Many vitamins have co-enzymatic functions. Thus, enzymatic activity can reflect nutritional status and serve as nutritional biomarkers. For example, erythrocyte glutathione reductase uses riboflavin as a cofactor and thus its activity to catalyse oxidation of glutathione, measurable by fluorescence assay, can be a biomarker of riboflavin status.

Biomarkers for validation or calibration

Biomarker methods are not without errors and do not reflect habitual diet unless repeatedly measured over time. Therefore, strictly speaking, a ‘validation’ study on validity of dietary assessment method is often argued to be called a ‘calibration’ study.

Biomarkers have often been used to examine validity of subjective methods of dietary assessment. Validity assessment of an error-prone instrument is often performed against a reference measure from another instrument (e.g. food-frequency questionnaires compared to weighed food diaries). Comparison between different instruments is informative, but both involve limitations of subjective methods. Use of objective biomarkers is thus important.

Use of recovery biomarkers is ideal, such as doubly labelled water or 24-hour urine collections. However these are often expensive or inconvenient for participants [3]. Instead concentration or prediction biomarkers are often used to evaluate the performance of a dietary assessment method. If a valid calibration equation is available, levels of concentration biomarkers and prediction biomarkers can be translated to estimates of absolute intakes. Each type of biomarkers has its own limitation (see below in section 5).

Laboratory analysis

Accurate assessment of dietary intake using biomarkers is dependent not only upon sample collection, but also the analytical measurement of the biomarker.

Minimising measurement error

Efforts should be made to standardise the collection, storage and analysis of specimens, but this may not be possible in large multi-centre studies which take place over a long time period. Measurement error may result from [4]:

• Errors or omissions in compliance with specimen collection protocol
• Errors in sample storage
• Errors during specimen analysis
• Effects from reagents, instruments and interfering substances
• Variability in technician technique
• Use of different or contaminated reagents
• Failure to maintain standardisation of the instrument

One key step to minimise laboratory measurement errors is blinding of the characteristics of the specimens, such as disease status. Ideally all specimens should be analysed consecutively to reduce between-assay variation. If a paired case control design is used, the two samples should be analysed consecutively with order of pairs randomised, and the within-pair order randomised. Quality control samples are available to ensure compatibility of results between laboratories. It is also possible to test reliability by conducting blinded duplicate analyses of specimens [4].

A quality control program should [4]:

• Monitor clerical errors
• Provide detailed instructions on technique for different specimen types
• Monitor proper labelling and logging in/out of specimens
• Monitor labelling effects of reagents and materials
• Confirm absence of contaminants
• Ensure equipment is calibrated
• Calibrate study samples based on quality control sample measurements

Assessing measurement error

The coefficient of variation can be used to assess reliability of replicate laboratory analyses of the same sample, and this can be calculated both within and between runs.

Combination with subjective estimates

Dietary intakes can be estimated by combining biomarkers with subjectively reported data. These estimates should be more valid as one method can account partly for the disadvantages of the other method i.e. biomarkers account for dietary misreporting and self-reporting methods account for errors associated with the metabolism of nutrients [15]. Thus, although concentrations or prediction biomarkers themselves cannot indicate absolute levels of dietary intakes, they can be used to predict absolute intakes by combining with subjective estimates

Key characteristics of nutritional biomarkers are summarised in Table D.3.10. It is important to recognise that all biomarkers have some limitations, but the degree and type of limitation vary by biomarker. Some limitations may or may not be reduced by the study design of sampling, assay, data processing, and statistical adjustment for errors and confounding, and should be appraised appropriately.

Strengths

• Avoid biases related to recall, reactivity or social desirability
• Errors related to biomarkers are independent of those of self-reported dietary intake
• Several bio-specimens can be obtained easily without increasing participant burden or discomfort

Recovery biomarkers

• Reflection of absolute intake useful in validation or calibration of self-reported estimates

Concentration or predictive biomarkers

• Can be used to rank individuals

Limitations

• Biomarker measurement is often more expensive than the use of subjective methods.
• Some biomarkers are difficult to obtain or may influence participation (e.g. tissue biopsies), posing ethical challenges and limiting the sample size.
• With a few exceptions, it is impossible to pinpoint the food source of a particular nutrient biomarker and therefore to make specific food/diet recommendations. For example, vitamin C biomarker may reflect consumption of whole fruits, fruits juices, potatoes, and dietary supplement. Although vitamin C biomarker is sensitive and specific, food sources and relevance to dietary guidelines could be diverse, depending on populations.

Here are some examples that a nutrient or food component is specific to a food source:

  - Lycopene reflecting tomato intakes.

  - The ratio of ¹³C to ¹²C, reflecting consumption of corns and canes (‘C4 plants’) [25]. As common sugars derive from corns or canes, the ratio was demonstrated to reflect self-reported intake of sugar-sweetened beverages.

  - Alkylresorcinols, reflecting cereal intake, as the phytochemicals are concentrated in bran fraction of grains [12].

Recovery biomarkers

• Not frequently identified for dietary factors.
• Reflection of dietary intake over a relatively short time.

Concentration or predictive biomarkers

• Not reflective of absolute intake.
• Unclear how much they reflect true intake vs physiological differences resulting in different biomarker concentrations rather than differences in intake.

Considerations relating to the use of nutritional biomarkers for assessing diet are summarised by population in Table D.3.11.

• The timing of specimen collection can result in measurement error due to within-individual biomarker variation. Variability within individuals can vary from hour-to-hour, by year, or longer.
• Comparison of within- and between-individual variation should be considered for specific biomarkers. If the within-individual variation is higher, a larger sample size should be considered [4]. The between-individual variation can be minimised by standardising and using reliable collection and laboratory methods.
• When biomarkers are used as exposures in analyses of associations with disease outcomes, associations should be adjusted for potential confounders, as these will be an issue to the extent that the biomarkers reflect dietary intake.

Sensitivity and specificity of a biomarker

In clinical and epidemiological fields, the words, ‘sensitivity’ and ‘specificity’, have been used in different ways, partly because a biomarker can be used to assess either nutritional intake or nutritional status. Here are some examples of ‘sensitivity’.

• ‘Sensitivity’ to assay or ‘analytical sensitivity’ would be high, if a biomarker captures true intake, in a dose-response manner, even if the biomarker is present in low concentrations [8].
• ‘Sensitivity’ to nutrient status would be high, if a biomarker identifies an abnormal nutritional status (e.g. deficiency) accurately. This use is consistent with the use in clinical epidemiology about accuracy of disease diagnosis.

Similarly, ‘specificity’ of a biomarker can be documented as the following:

• ‘Specificity’ or ‘analytical specificity’ would be high, if a biomarker is not influenced by other factors [8].
• ‘Specificity’ to nutrient status would be high, if a biomarker identifies normal nutritional status accurately.

Homocysteine is, for example, sensitive to folate intake, but not specific, because it can vary by intakes of other B vitamins and amino acids. Thyroid stimulating hormone is sensitive to iodine deficiency, but not sensitive to a normal range of iodine intake [26].

Cut-off points of biomarkers

It would be ideal to have cut-off points to diagnose certain states of nutritional status or nutritional intake. However, cut-offs are rarely established. One reason is because any single biomarker has limitations and is often used jointly with other indicators, thus leaving definite cut-off points undetermined. Another reason is diversity of applications of a single biomarker to clinical diagnosis, screening, surveys, monitoring, and other or complex objectives. See perspectives by Raghavan et al. [16] for more details.

Factors influencing sensitivity and specificity of nutritional biomarkers

Other factors might influence nutrient metabolism and may be potential confounders for an association between nutrient intake and nutrient biomarker. Many of the following considerations are based on clinical and biological knowledge. Impact of such influences on biomarkers in population-based research remains unestablished. Examples include [10]:

Genetic Variability

• Genes that may affect dietary intake patterns, taste, attraction to or preference for specific foods or food types etc.
• Biological variation in nutrient absorption, digestion, metabolism, distribution, tissue turnover, excretion.
• Epigenetic variation, gene-gene interactions.
• Gene variants are not necessarily an issue. Most gene variants influencing biomarkers are independent of dietary consumption. Therefore, unless a noticeable effect modification exists, gene variants do not confound a diet-biomarker association.

• Trained nurses/staff for the sample collection
• Materials for the sample collection
• Trained laboratory staff
• Laboratory equipment for the analyses
• Quality control documentation
