Combined heart rate and motion sensors


Combined heart rate and motion (HR+M) sensors measure two phenomena:

  1. Heart rate, a physiological response to physical activity
  2. Acceleration due to body movement, a biomechanical variable

The measurement errors from the two methods are not positively correlated; they may even (ideally) be negatively correlated [7]. At lower levels of intensity, heart rate is less accurate at estimating energy expenditure; this is the level that accelerometers generally have low error. Conversely, activities performed at moderate-to-vigorous intensity, especially biomechanically diverse activities, are assessed with great uncertainty with accelerometry but are measured well with heart rate monitoring. Activities not measured well by waist-mounted accelerometers such as cycling, walking on incline, carrying weights and activities involving predominantly upper-body work are also captured by heart rate monitoring [6, 27].

The HR+M method provides detailed data on frequency, intensity and duration of physical activity. Aside from doubly labelled water and indirect calorimetry, it is one of the most accurate methods for estimating physical activity energy expenditure over extended durations [2, 9, 31, 32]. Combined HR+M sensors do not provide information on the qualitative dimensions of physical activity, such as context or type. The dimensions of physical activity assessed by combined heart rate and movement sensors are described in Table P.3.13.

Table P.3.13 The physical activity dimensions which can be assessed by combined HR+M sensors.

Dimension Possible to assess?
Total physical activity energy expenditure
Timing of bouts of activity (i.e. pattern of activity)
Contextual information (e.g. location)
Posture (✔)
Sedentary behaviour

Heart rate and accelerometer data can be captured simultaneously using two separate devices [25] or combination monitors; however the principles of combined sensing modeling can usually be applied regardless of the capturing device(s) used. The first single-piece combined HR+M sensor was reported in 2000 but this device was never available commercially [22]. More sophisticated devices are capable of monitoring heart rate using digitalised electrocardiography (ECG) signal and simultaneously measure motion by an integrated accelerometer.

The first commercially available combined HR+M sensor was the Actiheart, a light-weight water-proof sensor designed to clip onto two standard ECG electrodes, capable of capturing uniaxial acceleration and average heart rate in short epochs over 11 days [6] Intra- and inter-instrument reliability and validity of the heart rate and motion sensor during electronically simulated heart rate, mechanical shaking, and specific activities conducted during laboratory conditions have been assessed [6, 14, 28], and it has also been validated against doubly labelled water (DLW) [2, 9, 23]. Other combined sensors include the Actitrainer [21], Ickal [4], and wrist-worn accelerometers with optical heart rate monitoring inbuilt such as the Fitbit Charge HR [23].

Combined HR+M sensor placement

  • Chest-worn ECG-electrode based devices (e.g. Actiheart) are positioned on at least two ECG electrodes, positioned reasonably horizontally (e.g. at V5) but without the monitor pulling the points of skin contact; this could add noise to the heart rate readings and also cause discomfort.
  • Chest-belt-based devices (e.g., Acti-Trainer, Ickal) may be bulkier but are almost impossible to place wrongly; the strap goes around the chest with the belt-electrodes making close contact with the skin.

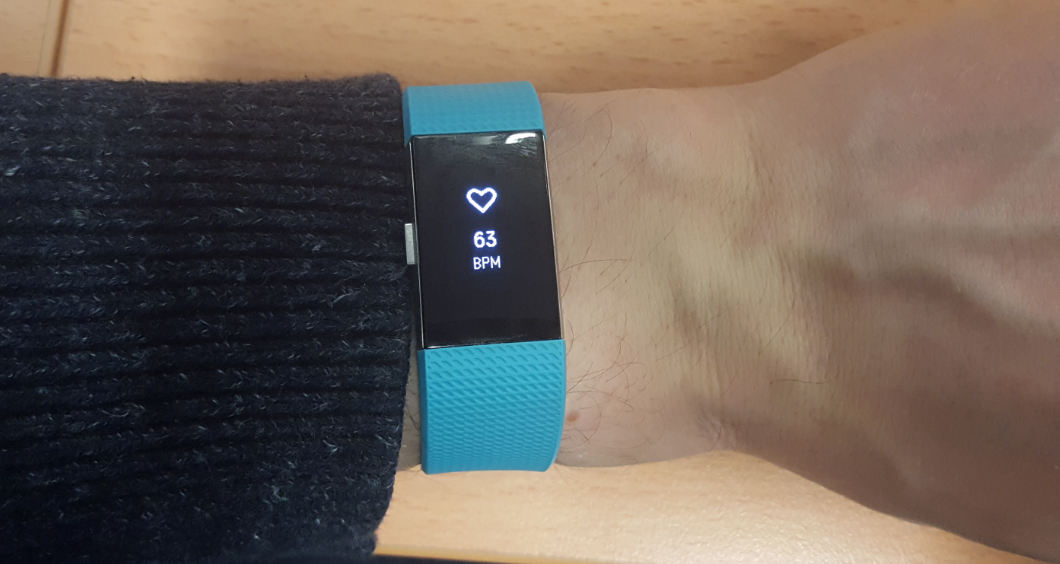

  • Wrist-worn devices (e.g. Fitbit Charge HR, Garmin VivoSmart HR+) are also easy to place; they are worn just like a wrist watch. Close skin contact is also essential for these to optimise light transmission and detection by the photodiode and minimise light from external sources.
  • Misalignment of uniaxial accelerometers may result in an altered movement signal if the acceleration along the alternative axis is different [6].
  • Placement above or below the apex of the sternum has minimal effect on registered movement and estimates of energy expenditure [5].
  • Placement of the monitor below the sternum (see Figure P.3.10) may be marginally preferable to reduce noise levels of heart-rate data [5] and is usually preferred by the volunteer.

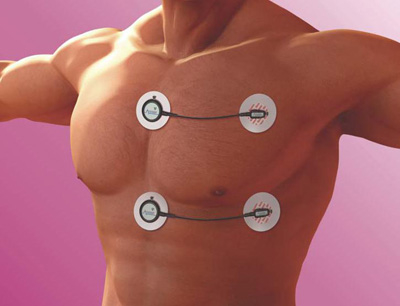

Figure P.3.10 Left panel: Upper and lower positions for ECG electrode-based combined sensor attachment. The accelerometer in this device is placed in the larger round clip orthogonally to the wire axis, thus here orientated to measure accelerations along the longitudinal axis of the body [5]. Right panel: Combined heart rate and movement sensor on wrist.


The relationships of physical activity energy expenditure with heart rate are different between individuals as explained in the heart rate monitoring section. Resources will therefore be required for individual calibration and this will vary according to the method of calibration. One study investigated the following range of calibration techniques, shown below with decreasing level of complexity:

  1. Wide-range graded ergometer test with EE measurement
  2. Wide-range graded ergometer test with estimated EE profile
  3. Moderate-range graded step test with EE measurement
  4. Moderate-range graded step test with estimated EE profile
  5. Low-range walk test with EE measurement
  6. Low-range walk test with estimated EE profile
  7. No dynamic calibration (using only resting heart rate)

Simple calibration techniques (walk and step test) were shown to achieve acceptable levels of accuracy for the combined technique to be considered as an objective measure in population studies [8].

A flexible but consistent approach to calibration has been suggested which spans individual calibration over a range of activities at different intensities, to non-dynamic calibration which accounts for parameters known to affect the heart rate – energy expenditure relationship, such as age, sex or sleeping heart rate [27]. A summary of the trade-off between the validity and feasibility of different individual calibration methods is shown in Figure P.3.11.

Figure P.3.11 Trade-off between validity and feasibility of calibration procedures.
GXT: graded exercise test; XT: exercise test.
Adapted from: [8].

The software of some combined sensor platforms incorporates facilities for conducting exercise tests that permits individual calibration of the HR-EE relationship. Individual calibration may, however, be performed with any device which measures heart rate using graded exercise test protocols (e.g. step frequency audio prompt available from All that is required is that the raw heart rate data are exported and analysed in standard statistical packages with appropriate programming.

  • Combined heart rate and movement sensing is suitable for observational as well as intervention studies.
  • Although combined sensors are still relatively expensive, they have been used in large population based studies (> 10,000 participants) suggesting that they are a feasible option in epidemiological research. Newer devices, particularly wrist monitors, are cheaper and therefore a more feasible option in terms of cost, and as with most wearable technology prices in general are likely to fall.
  • Validation studies suggest that combined heart rate and movement sensors have great utility as measures of physical activity behaviour in free-living adults and children; depending on feasibility aspects of individual monitor types.

There are three main approaches for deriving estimates of physical activity from combined heart rate and acceleration data:

  • Multiple linear regression equations on ‘representative data’
  • Conditional modeling with a priori biological concepts
  • Complex non-linear modeling, e.g. splines

Multiple regression equations

The first study to demonstrate the utility of combined HR+M sensing to improve estimates of physical activity used multiple linear regression [3]. Further studies showed that using regression analyses to predict energy expenditure from motion sensors combined with heart rate increased explained variance of criterion energy expenditure compared to use of heart rate alone [17, 19]; these earlier studies did not consider individual calibration. Moon et al [20] tested 13 linear and non-linear functions, but found that the use of movement sensing to assign heart rate to either an ‘active’ curve, or ‘inactive’ curve resulted in the lowest prediction error (~3.3%). This type of conditional modelling is discussed further below.

Conditional modelling

Conditional modelling involves different treatment of the same raw value depending upon a set of criteria; “If [condition], then do one thing, if not [condition], then do another thing with the same raw value” (see Figure P.3.12). This commonly results in the raw value being entered into one of a selection of regression equations to predict energy expenditure. The above example from work Moon et al is a form of condition modelling.

Rennie et al. [22] also used individually established heart rate – energy expenditure relationships; one ‘sedentary’ and one ‘active’. The choice of which relationship to use was made based upon a movement count threshold, a method that resulted in high validity in a small calorimetry study. Strath et al [25] used two individually established heart rate – energy expenditure relationships (one ‘arm-only’ and one ‘leg/whole-body’), depending on the ratio between leg and wrist accelerometers. This resulted in greater precision of the physical activity energy expenditure estimation.

Branched equation modelling was examined in a study that used the combination of heart rate monitoring and accelerometry against whole-body calorimetry [7]. Physical activity energy expenditure was estimated with four different weightings for the accelerometer data and heart rate data depending on the intensity of the activity [7]. That is, in low levels of movement and heart rate the accelerometry data is mainly relied upon, and at very high intensities only heart rate data are lied upon, with two interim weightings in between. Low to moderate activities performed by adults in a laboratory setting were well-captured by branched equation modelling of the two sources of information [28]. Another evaluation of branched equation modelling validated against indirect calorimetry during a wide range of activities in a laboratory setting also reported that this particular technique produces valid estimates [14]. Free-living evaluations against DLW in Europe and Africa suggest that the method is valid for predicting PAEE [2, 9, 23]

Alternative modelling techniques have also been investigated [9, 27], and irrespective of modelling technique combined sensing was shown to accurately reflect physical activity energy expenditure estimation at both a group and individual level [27].

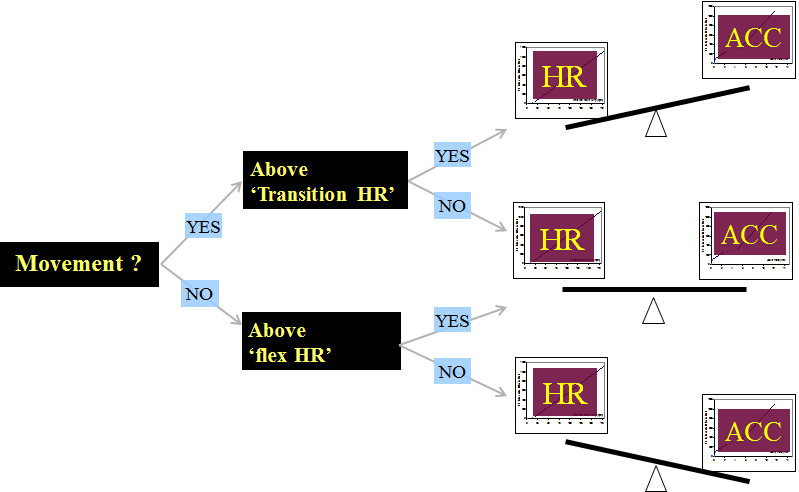

Figure P.3.12 Branched equation modelling is a decision tree for determining the weighting in the weighted average between physical activity intensity determined by heart rate and physical activity intensity determined by accelerometer; the heart rate estimate is weighed the heaviest when both heart rate and movement levels are high, where the accelerometer estimate has greatest weight when both are low.
Adapted from: [7].

Complex non-linear modelling

Methods such as multivariate adaptive regression splines (MARS) use multiple segments of polynomial functions which take both local time point inputs and features derived from the time-series data around those local time points; this modelling technique also produces accurate estimates [32].

Identification of non-wear time

Non-wearing time segments in non-labelled activity records from free-living are more easily determined from physiological signals than when using an accelerometer alone, since “no motion” looks the same regardless of an accelerometer being worn or not. However, attention must be given to handling measurement noise in long-term recordings obtained during free-living, a phenomenon which is more common in physiological signals such as heart rate [24]; quantified uncertainty of the signals may then be used to make stronger inferences on wear/non-wear [9].

An overview of the characteristics of combined HR+M sensors is outlined in Table P.3.14.


Most of the advantages of accelerometry and heart rate monitoring alone are also advantages of combined heart rate and motion measurement:

  • Provides an objective measure of physical activity
  • Provides an accurate estimate of energy expenditure during physical activity
  • Combined measurement has been shown to be reliable and valid at both individual and group level
  • Gives a detailed description of activity patterns
  • Combined HR+M devices have storage capacity of at least 7 days
  • Able to detect change in activity
  • Unlikely to induce a large change in behaviour
  • Single-piece devices involve a reasonably low individual burden
  • Suitable for use in the young and old
  • Easy and quick data collection
  • Non wearing time easily identified
  • Waterproof
  • Reasonably low level individual calibration can yield accuracy suitable for epidemiological studies
  • Using the combined approach means that many of the drawbacks when the methods are used in isolation are overcome


  • Some combined HR+M devices are still prohibitively expensive
  • Measurement noise can be present in the heart rate data
  • The data produced from either combined devices or the two instruments used simultaneously are somewhat complex and requires careful interpretation and guidance (or provision of software) from those experienced in the method. This is particularly true for dealing with measurement noise in HR recordings
  • Combining a heart rate monitor with a separate accelerometer imposes an additional individual burden and potential time synchronisation issues
  • Compliance may be an issue in some populations especially adolescents
  • If using electrodes, individuals may experience an adverse skin reaction to these

Table P.3.14 Characteristics of combined HR+M sensors.

Consideration Comment
Number of participants Small to large
Relative cost Moderate to high
Participant burden High with individual calibration
Researcher burden of data collection High with individual calibration
Researcher burden of data analysis Moderate to High
Risk of reactivity bias Yes
Risk of recall bias No
Risk of social desirability bias No
Risk of observer bias No
Participant literacy required No
Cognitively demanding No

Considerations relating to the use of combined HR+M sensors for assessing physical activity are summarised by population in Table P.3.15.

Combined monitoring of heart rate and movement have been undertaken in in Europe, the Americas, the Arctic, Africa, and Asia, and across the age range of young children to older adults [2, 10, 11, 12, 15, 16, 19, 22, 25, 26, 29, 30].

Table P.3.15 Physical activity assessment by combined HR+M sensors in different populations.

Population Comment
Pregnancy Depending on term, may need to consider placement of monitors to avoid discomfort. Skin can also be more sensitive during pregnancy which could increase chances of irritation.
Infancy and lactation Not suitable.
Toddlers and young children May have difficulty wearing electrodes and chest strap both in terms of having more sensitive skin but also the size of straps and belts of the monitors themselves. There are also small pieces which could be swallowed. Child curiosity could lead to fiddling which interferes with heart rate signal.
Adolescents Skin sensitivity may lead to irritation.
Older Adults Safety may be a concern when conducting exercise testing for individual calibration. Self-paced protocols may be viable alternatives. Dexterity may be an issue when changing electrodes/placing device.
Ethnic groups
Other In obese individuals it may be more difficult to get a good heart rate signal due to adiposity acting as a signal dampener.
  • Electrodes needs changing during free-living – approximately every second day.
  • Individuals should be confident and competent at placing the device, i.e. have sufficient explanation and written instructions provided.
  • It may be necessary to involve a third party (e.g. carer or parent) to help with changing electrodes and/or placement of the device.
  • Skin irritations from electrodes are more common during warmer weather due to increased heat and sweat. Extensive electrode testing for most useful type in specific contexts advised.
  • Chest belt attachment may a good alternative for ECG systems but can also be uncomfortable, particularly for males.
  • For wrist-based devices, close skin contact is essential. Other ways to limit external light noise is by covering the device with dark clothes.

The following resources are usually required in addition to trained personnel:

  • Combined HR+M device(s) in the form of either:
    • Combined HR+M device(s) in the form of either:
    • An integrated device
  • Interface (e.g. USB)
  • Software (for initialisation/download/analysis)
  • Charger
  • Additional ECG pads to replace as required (for ECG-based systems)

A method specific instrument library is being developed for this section. In the meantime, please refer to the overall instrument library page by clicking here to open in a new page.
